SDEC Power 1750KVA Diesel Generator 1500RPM 50Hz

SDEC Power 1750KVA Diesel Generator 1500RPM 50Hz

Brand Name:	AIKE POWER
Model Number:	AS688
MOQ:	1
Price:	negotiate
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Name:

SDEC Power

Engine Model:

6KTAA25-G39

Insulation Class:

Speed:

1500rpm

Alternator Type:

Brushless

Frequency:

50Hz

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

1750KVA diesel generator 50Hz

SDEC Power diesel generator 1500RPM

industrial diesel generator with warranty

Product Description

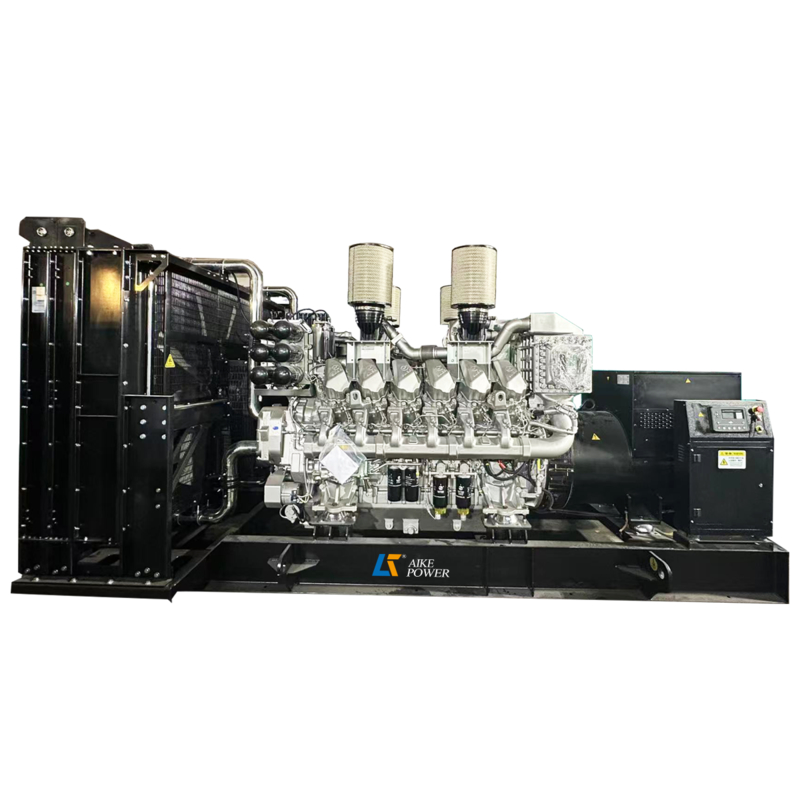

SDEC Power Generator Set 1400KW/1750KVA 50HZ 1500RPM Diesel Generator

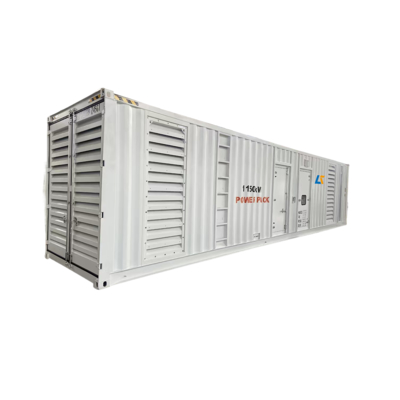

Shangchai Diesel Engine, Diesel Generator set 50HZ/1500RPM with adjustable voltage options: 380/220V, 400/230V, 415/240V. Available in multiple configurations including Open Type, weatherproof type, soundproof type, and trailer type.

Also available in 60HZ/1800RPM with voltage options: 220/127V, 380/220V, 440/254V.

Automatic Transfer Switch (ATS) available as optional equipment.

Controller brand options: UK Deepsea, Czech ComAp, Denmark DEIF, or Smartgen China.

Generator Standard Components:

Meets environmental temperature 40℃ with water tank radiator
Driving belt cooling fans with fan safety shield
24V charging generators
Single bearing generator with IP23 Grading Protection and H Insulation degree
Shock absorber
Dry air filter, Fuel filter, Oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery Charger
Complete exhaust system including pipe, bellows, flange, and muffler set
8-hour base fuel tank
Complete documentation and manuals

Technical Specifications

Model	Standby Power (kVA)	Standby Power (kW)	Prime Power (kVA)	Prime Power (kW)	Model	Bore×Stroke (mm)	Engine Fuel Consumption (L/h)	Weight (Kg)	Lube Volume (L)	Dimensions (LxWxH mm)
AS11	11	8.8	10	8	3Z1.1-G42	78x78.4	2.8	220	4	14006201100
AS14	13.75	11	12.5	10	3ZT1.1-G42	78x78.4	3.6	220	4	14006201100
AS17	16.5	13.2	15	12	4Z2.3-G21	85x100	4.6	440	5.5	16008301200
AS23	22	17.6	20	16	4Z2.7-G21	90x105	6	520	6.5	16008301200
AS28	27.5	22	25	20	4Z3.0-G21	95x105	7.4	530	6.5	16008301200
AS34	34.38	27.5	31.3	25	4Z3.2-G21	98x105	8.8	530	6.5	16008301200
AS44	44	35.2	40	32	4ZT3.2-G21	98x105	10.7	550	6.5	16008301200
AS55	55	44	50	40	4ZT3.5-G21	98x115	12.5	570	6.5	16008301200
AS69	68.75	55	62.5	50	4ZT4.1-G21	105x118	15.4	620	6.5	16008301200
AS76	75.63	60.5	68.8	55	4ZTAA4.1-G21	105x118	16.4	735	6.5	16008301200
AS88	88	70.4	80	64	4ZTAA4.1-G31	105x118	16.4	740	6.5	16008301200
AS55	55	44	50	40	4HT4.3-G21	105×124	14.5	960	13	17509951435
AS69	68.75	55	62.5	50	4HT4.3-G22	105×124	15.9	1000	13	17509951435
AS88	88	70.4	80	64	4HT4.3-G23	105×124	18.3	1080	13	17509951435
AS110	110	88	100	80	4HTAA4.3-G21	105×124	21.4	1123	13	17509951480
AS124	123.8	99	113	90	4HTAA4.3-G23	105×124	24	1123	13	17509951480
AS138	137.5	110	125	100	4HTAA4.3-G22	105×124	27.5	1123	13	17509951480
AS151	151.3	121	138	110	6HTAA6.5-G21	105×124	28.7	1412	17.5	240010251535
AS165	165	132	150	120	6HTAA6.5-G22	105×124	31.2	1412	17.5	240010251535
AS206	206.3	165	188	150	6HTAA6.5-G23	105×124	41.3	1412	17.5	240010251535
AS220	220	176	200	160	6DTAA8.9-G21	114×144	42	1670	19	250010551660
AS248	247.5	198	225	180	6DTAA8.9-G24	114×144	49.3	1835	19	260011901830
AS275	275	220	250	200	6DTAA8.9-G23	114×144	54.2	1835	19	260011901830
AS344	343.8	275	313	250	6ETAA11.8-G22	128×153	62.5	2240	41	306511051626
AS385	385	308	350	280	6ETAA11.8-G21	128×153	71.6	2240	41	306511051626
AS413	412.5	330	375	300	6ETAA12.8-G22	130×161	81.2	1640	36	306511051626
AS440	440	352	400	320	6ETAA12.8-G21	130×161	85.6	1640	36	306511051626
AS440	440	352	400	320	6ETAA12.8-G32	130×161	96.1	2700	36	310011051626
AS495	495	396	450	360	6ETAA12.8-G31	130×161	99.1	2700	36	330011051626
AS550	550	440	500	400	6ETAA12.8-G310	130×161	99.1	2800	36	340011051626
AS550	550	440	500	400	6KTAA25-G311	130×161	102	4770	70	390016082109
AS619	618.8	495	563	450	6KTAA25-G310	170×185	110	4970	70	390016082109
AS688	687.5	550	625	500	6KTAA25-G39	170×185	125	5060	70	390016082109
AS770	770	616	700	560	6KTAA25-G38	170×185	139	5260	70	390016082109
AS550	550	440	500	400	6KTAA25-G36	170×185	154	4770	70	390016082109
AS619	618.8	495	563	450	6KTAA25-G35	170×185	111	5060	70	390016082109
AS688	687.5	550	625	500	6KTAA25-G34	170×185	124	5260	70	390016082109
AS770	770	616	700	560	6KTAA25-G33	170×185	136	5260	70	390016082109
AS825	825	660	750	600	6KTAA25-G32	170×185	148	5260	70	390016082109
AS990	990	792	900	720	6KTAA25-G31	170×185	163	5400	70	419116082109
AS1100	1100	880	1000	800	6KTAA25-G320	170×185	180	5800	70	439116082109
AS1238	1238	990	1125	900	6KTAA25-G321	170×185	190	5800	70	439116082109

Frequently Asked Questions

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

Q: What is your lead time?

A: About 15-25 days after receiving advance deposit or original L/C.

Q: What certificates do you have?

A: We have ISO certification and can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

Q: What warranty do you provide?

A: One year or 1200 hours' running (whichever occurs first). During the guarantee period, we will supply free replacement of easily damaged parts for any problems except those caused by incorrect operation. After expiration, we supply spare parts at cost for genset maintenance.
