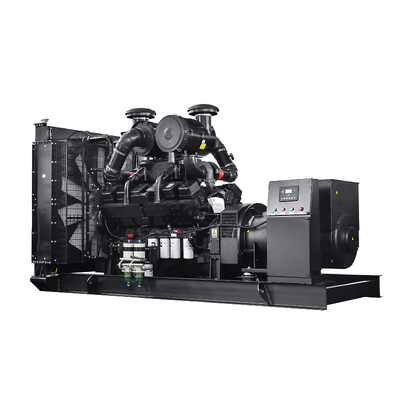

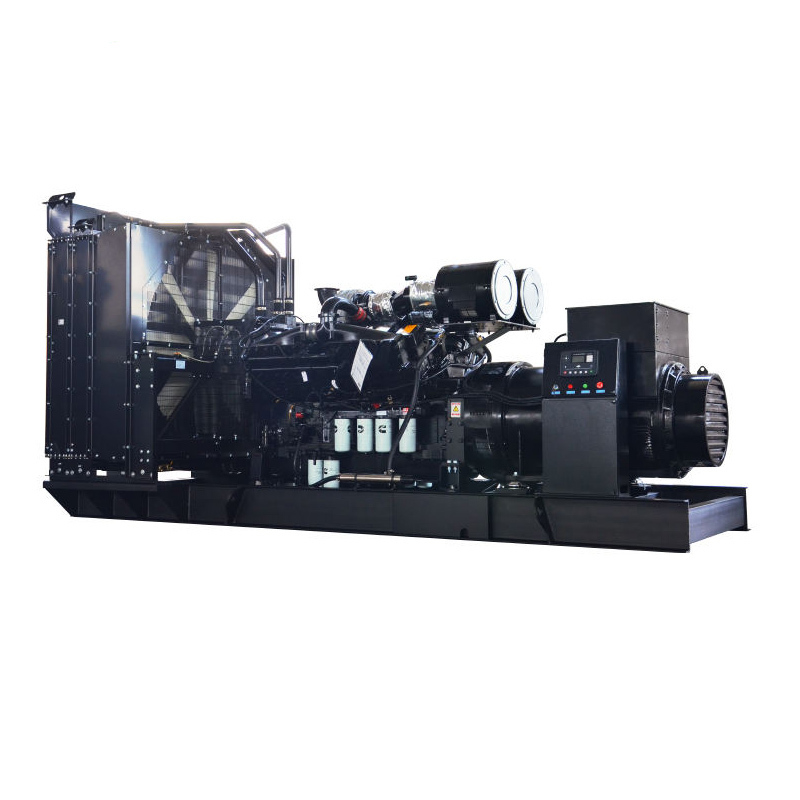

900KW Cummins Diesel Generator Set with KTA38-G2A Engine

900KW Cummins Diesel Generator Set with KTA38-G2A Engine

Brand Name:	AIKE POWER
Model Number:	AC1000
MOQ:	1
Price:	USD
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Cummins Engine Model:

KTA38-G2A

Cooling System:

Water Cooled

Cooling Way:

Water

Cylinder:

Excitation Way:

Brushless Self-exciter, AVR

Governor Type:

Electronic Governor

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Rated Power:

20 KW-2000 KW

Alternator Model:

LVI634D

Name:

Cummins Diesel Generator Set

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

900KW Cummins diesel generator

Cummins KTA38-G2A generator set

industrial diesel generator with warranty

Product Description

900KW 1120kVA Cummins Diesel Generator Cummins Diesel Engine

Cummins Diesel Engine, Diesel Generator set 50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, available in Open Type, weatherproof type, soundproof type, or trailer type configurations. Also available in 60HZ/1800RPM with voltage options of 220/127V, 380/220V, or 440/254V.

ATS (Automatic Transfer Switch) available as optional equipment.

Controller brand options: UK Deepsea, Czech ComAp, Denmark DEIF, or Smartgen China.

Generator Standard Components

Dongfeng Cummins Engine, model KTA38-G2A
Meets environmental temperature 40℃ with water tank radiator, driving belt cooling fans, and fan safety shield
24V charging generators
Single bearing generator with IP23 Grading Protection and H Insulation degree
Shock absorber
Dry air filter, Fuel filter, Oil filter
Power output circuit breaker
Standard control panel
12V battery and battery connection cables
Battery Charger
Exhaust pipe, Bellows, Flange, Muffler set
8 hours' base tank
Documents and Manuals

Technical Specifications

Generator Set
Genset Model	AC1000
Rating Power (KW/KVA)	728/910
Standby Power(KW/KVA)	800/1000
Rating Ammeter(A)	1313
Diesel Engine
Engine model	KTA38-G2A
Prime Power(KW/KVA)	813/1105
Standby Power(KW/KVA)	895/1217
Number of Cylinder & Configuration	12V
Bore X Stroke (mm)	159X159
Displacement(l)	38
Compression Ratio	13.9:1
Governor type	Electronic governor
Rated RPM	1500
Exhaust System
Exhaust gas flow(m³/min)	176
Max. Exhaust Gas Temperature(℃)	527
Max. Exhaust back Pressure(KPA)	10
Air Intake System
Aspiration Type	Turbo & After cooled
Max. intake depression(mbar)	6
Combustion air Volume(m³/min)	51
Fuel System
Rating Fuel Consumption(l/h)	194
75% full Fuel Consumption(l/h)	197
Lubrication System
Total oil capacity(l)	135
Max permissible oil temp(℃)	121
Oil pressure at rated rpm(KPA)	241-345
Cooling System
Total Coolant capacity(l)	308
Max. temperature of coolant(℃)	100
Fan cooling air flow (m³/min)	900
Alternator
Alternator model	LVI634D
Rating Voltage(V)	400/230
Rating Capacity(KW/KVA)	750/937.5
Eff.%	93.8%
Power Factor	0.8
Exciting type	Brushless self-exciter, AVR
Voltage regulation	±0.5%
No. of Phase	3 phase 4 wire
Enclosure Class	IP23
Class of Insulation	H
Battery
Rating Capacity(AH)	2X150AH 12V
Dimension
Generator set dimension (LXWXH)	4650x1630x2270
Weight
Generator set Net Weight (kg)	7650

Frequently Asked Questions

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

Q: What is your lead time?

A: About 15-25 days after receiving advance deposit or original L/C.

Q: What certificates do you have?

A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

Q: What warranty do you provide?

A: One year or 1200 hours' running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
