144kW Perkins Diesel Generator Set with 380V Adjustable Voltage

144kW Perkins Diesel Generator Set with 380V Adjustable Voltage

Brand Name:	AIKE POWER
Model Number:	AP200
MOQ:	1
Price:	negotiate
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Name:

Perkins Diesel Generator Set

Alternator Model:

Leroysomer

Engine:

Perkins

Engine Model:

1106A-70TG3

Fuel:

Diesel

Options:

Silent Canopy/Trailer/ATS

Power Factor:

0.8lagging

Control Panel Brand:

Deif, Deepsea, Comap

Speed:

1500/1800 RPM

Insulation:

Class H

Voltage:

380/220V,400/230V,415/240V Adjustable

Circuit Breaker:

ABB,Chit,Delixi

Governor Type:

Electronic

Frequency:

50/60HZ

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

144kW Perkins diesel generator

380V adjustable voltage generator

Perkins diesel generator set

Product Description

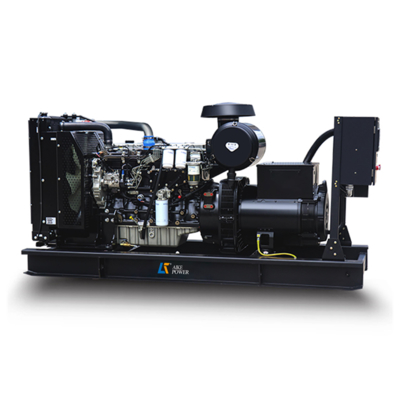

144kW/180kVA Perkins Diesel Generator Set

Product Description

144kW/180kVA Perkins diesel generator set featuring Perkins diesel engine with multiple configuration options:

50HZ/1500RPM or 60HZ/1800RPM operation
Adjustable voltage options: 380/220V, 400/230V, 415/240V (50Hz) or 220/127V, 380/220V, 440/254V (60Hz)

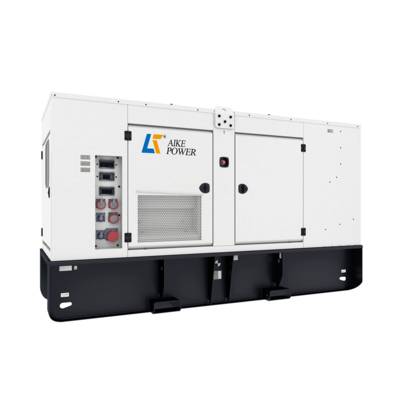

Available in open type, weatherproof, soundproof, or trailer-mounted configurations
Perkins engines sourced from China, UK, USA, or India depending on model requirements
Optional ATS (Automatic Transfer Switch) available
Controller options: UK Deepsea, Czech ComAp, Denmark DEIF, or China Smartgen

Generator Standard Components

40℃ water tank radiator with fan safety shield
24V charging generator
Single bearing generator with IP23 protection and H insulation
Shock absorber system
Dry air filter, fuel filter, and oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery charger
Complete exhaust system with muffler
8-hour base fuel tank
Full documentation and manuals

Technical Specifications

Model	Standby Power	Prime Power	Engine Model	Bore×Stroke (mm)	Fuel Consumption (L/h)	Weight (Kg)	Dimensions (LxWxH mm)
AP10	10kVA/8kW	8kVA/7kW	403A-11G1	77×81	3	359	1430×552×1150
AP14	14kVA/11kW	13kVA/10kW	403A-15G1	84×90	3.7	362	1430×552×1150
AP22	22kVA/18kW	20kVA/16kW	404A-22G1	80×100	5.3	467	1580×552×1150
AP33	33kVA/26kW	30kVA/24kW	1103A-33G	105×127	7.1	667	1580×720×1165
AP50	50kVA/40kW	45kVA/36kW	1103A-33TG1	105×127	10.7	730	1600×720×1180
AP66	66kVA/53kW	60kVA/48kW	1103A-33TG2	105×127	13.9	780	1600×720×1180
AP72	72kVA/58kW	65kVA/52kW	1104A-AATG1	105×127	14.8	800	1760×720×1180
AP88	88kVA/71kW	80kVA/64kW	1104A-44TG2	105×127	18.7	816	1760×720×1180
AP113	113kVA/90kW	100kVA/80kW	1104C-44TAG2	100×127	20.6	1100	2240×850×1380
AP150	150kVA/120kW	135kVA/108kW	1106-70TG1	100×127	31.5	1250	2240×850×1380
AP165	165kVA/132kW	150kVA/120kW	1106-70TG2	100×127	41	1300	2240×850×1380
AP200	200kVA/158kW	180kVA/144kW	1106A-70TG3	105×127	40.2	1360	2345×850×1400
AP225	225kVA/183kW	200kVA/160kW	1106A-70TAG4	117×136	45	2170	2430×960×1590
AP275	275kVA/220kW	250kVA/200kW	1506A-E88TAG2	117×136	48	2170	2430×960×1590
AP300	300kVA/240kW	275kVA/220kW	1506A-E88TAG3	117×136	45	2170	2430×960×1590
AP330	330kVA/264kW	300kVA/240kW	1506A-E88TAG4	117×146	56	2200	3000×1100×1700
AP400	400kVA/320kW	350kVA/280kW	1506A-E88TAG5	117×146	60	2200	3000×1100×1700
AP450	450kVA/360kW	400kVA/320kW	2206C-E13TAG2	130×157	71	3300	3100×1120×1800
AP500	500kVA/400kW	455kVA/364kW	2206C-E13TAG3	130×157	81	3400	3100×1120×1800
AP550	550kVA/440kW	500kVA/400kW	2506C-E15TAG1	137×171	95	3800	3300×1150×2050
AP660	660kVA/528kW	600kVA/480kW	2506C-E13TAG2	137×171	100	3950	3300×1150×2050
AP700	700kVA/560kW	625kVA/500kW	2806A-E18TAG1A	145×183	123	4710	3500×1150×2190
AP800	800kVA/640kW	725kVA/580kW	2806A-E18TAG2	145×183	132	4710	3500×1150×2190
AP900	900kVA/720kW	800kVA/640kW	4006-23TAG2A	160×190	157	5020	4200×1470×2200
AP1000	1000kVA/800kW	900kVA/720kW	2006-23TAG3A	160×190	172	5220	4400×1470×2200
AP1100	1100kVA/880kW	1000kVA/800kW	4008-TAG1A	160×190	195	7320	4800×2050×2450
AP1375	1375kVA/1100kW	1250kVA/1000kW	4008-TAG2A	160×190	226	7611	4800×2050×2450
AP1500	1500kVA/1200kW	1350kVA/1080kW	4012-46TWG2A	160×190	259	9154	5000×2120×2760
AP1500	1500kVA/1200kW	1350kVA/1080kW	4012-46TAG1A	160×190	283	11200	5000×2120×2760
AP1650	1650kVA/1320kW	1500kVA/1200kW	4012-46TWG3A	160×190	283	11200	5000×2120×2760
AP1875	1875kVA/1500kW	1710kVA/1368kW	4012-46TAG2A	160×190	301	12000	5200×2240×2870
AP2000	2000kVA/1600kW	1850kVA/1480kW	4016-46TAG3A	160×190	370	13200	5600×2240×2870
AP2000	2000kVA/1600kW	1850kVA/1480kW	4016-TAG1A	160×190	424	15430	5930×2300×3010
AP2250	2250kVA/1800kW	2000kVA/1600kW	4016-61TRG1	160×190	424	15430	5930×2300×3010
AP2255	2255kVA/1800kW	2000kVA/1600kW	4016-TAG2A	160×190	434	15430	5930×2300×3010
AP2500	2500kVA/2000kW	2250kVA/1800kW	4016-61TRG2	160×190	483	15960	6400×2300×3010
AP2750	2750kVA/2200kW	2500kVA/2000kW	4016-61TRG3	160×190	528	15960	6500×2300×3010

Frequently Asked Questions

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

Q: What is your lead time?

A: About 15-25 days after receiving advance deposit or original L/C.

Q: What certificates do you have?

A: We have ISO certification and can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

Q: What warranty do you provide?

A: One year or 1200 hours' running (whichever occurs first). During the guarantee period, we supply free replacement for easily damaged parts (excluding incorrect operation). After expiration, we provide cost spare parts for genset maintenance.
