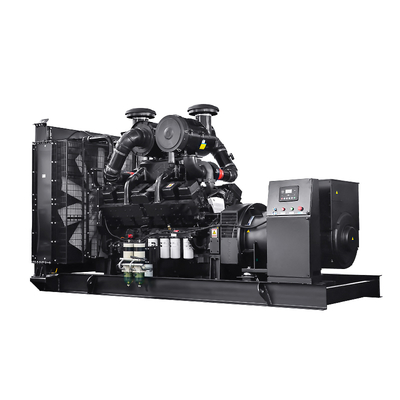

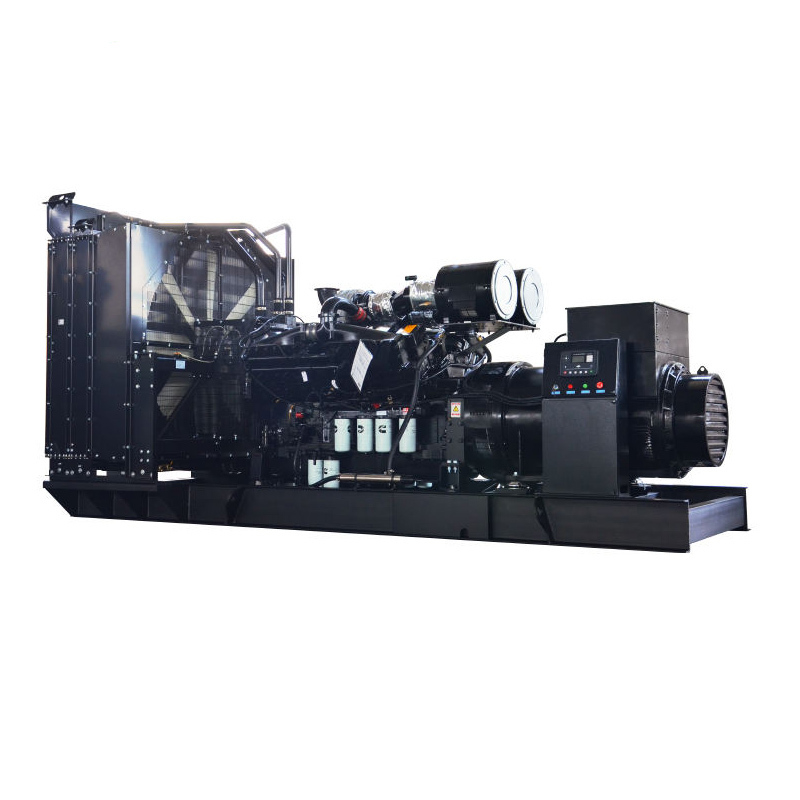

Cummins 1250KVA Diesel Generator Set 1000KW 60Hz Water Cooled

Cummins 1250KVA Diesel Generator Set 1000KW 60Hz Water Cooled

Brand Name:	AIKE POWER
Model Number:	AC1375
MOQ:	1
Price:	negotiate
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Name:

Cummins 1250 KVA Diesel Generator Genset

Cummins Engine Model:

YC12VTD1680-D32

Cooling System:

Water Cooled

Cooling Way:

Water

Cylinder:

Excitation Way:

Brushless Self-exciter, AVR

Governor Type:

Electronic Governor

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

6 Cylinders In Line

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

Cummins 1250KVA diesel generator set

1000KW water cooled generator

60Hz Cummins diesel generator

Product Description

1000KW 1250KVA Cummins Diesel Generator Set

1000KW 1250KVA Diesel Engine Generator, 60HZ Cummins Diesel Generator Set

Cummins Diesel Engine, Diesel Generator set YC12VTD1680-D32
60HZ/1500RPM, 380/220V, 400/230V, 415/240V (adjustable)
Available in Open Type, weatherproof type, soundproof type, and trailer type configurations.
Optional configurations: 60HZ/1800RPM with voltage options of 220/127V, 380/220V, 440/254V.

Optional Features

ATS (Automatic Transfer Switch) available as option

Controller brand options: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Components

Dongfeng Cummins Engine, model YC12VTD1680-D32
40℃ water tank radiator with driving belt cooling fans and fan safety shield
24V charging generators
Single bearing generator with IP23 protection and H insulation degree
Shock absorber
Dry air filter, fuel filter, oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery charger
Exhaust system components (pipe, bellows, flange, muffler set)
8-hour base fuel tank
Complete documentation and manuals

Technical Specifications

Model	Standby Power (kVA)	Standby Power (kW)	Prime Power (kVA)	Prime Power (kW)	Model	Bore×Stroke (mm)	Fuel Consumption (L/h)	Weight (Kg)	Lube Volume (L)	Dimensions (LxWxH mm)
AC28	28	23	26	21	4B3.9-G1	102×120	6.5	885	10.9	1600×830×1200
AC35	35	28	31	25	4B3.9-G1	102×120	6.8	885	10.9	1600×830×1200
AC43	43	35	40	32	4BT3.9-G1	102×120	8	900	10.9	1800×830×1200
AC53	53	42	45	36	4BT3.9-G1	102×120	9.8	930	10.9	1800×830×1200
AC58	58	46	53	42	4BTA3.9-G2	102×120	12.6	1100	10.9	1950×830×1200
AC62	62	50	56	45	4BTA3.9-G2	102×120	13.8	1100	10.9	1950×830×1200
AC75	75	60	66	53	4BTA3.9-G2	102×120	15	1100	10.9	2150×830×1200
AC88	88	70	80	64	6BT5.9-G2	102×120	17	1130	16.4	2150×830×1200
AC100	100	80	90	72	6BT5.9-G2	102×120	19	1160	16.4	2280×830×1200
AC110	110	88	100	80	6BT5.9-G2	102×120	21	1170	16.4	2280×830×1200
AC125	125	100	112	90	6BT5.9-G2	102×120	22	1190	16.4	2400×950×1300
AC137	137	110	125	100	6BTA5.9-G2	102×120	24	1200	16.4	2400×950×1300
AC169	169	135	150	120	6BTAA5.9-G2	102×120	26	1220	16.4	2650×950×1430
AC206	206	165	187.5	150	6CTA8.3-G2	114×135	33	1680	23.8	2650×950×1430
AC225	225	180	200	160	6CTA8.3-G2	114×135	33	1700	23.8	2650×950×1530
AC275	275	220	250	200	6CTA8.3-G2	114×135	44	1850	23.8	2800×980×1530
AC303	302.5	242	275	220	6LTAA8.3-G2	114×135	53	2000	23.8	2800×980×1530
AC312	312	280	280	220	NT855-GA	140×152	54	2100	27.6	2900×1000×1600
AC350	350	310	312	250	NTA855-G1A	140×152	61	3120	39	2900×1000×1600
AC388	388	315	350	280	NTA855-G1B	140×152	74	3120	39	2950×1300×1600
AC393	393	330	357.5	286	NTA855-G2A	140×152	74	3250	39	3000×1000×1600
AC412	412	330	375	300	NTA855-G4	140×152	82	3300	39	3200×1120×1600
AC450	450	360	400	320	NTAA855-G7A	140×152	86	3550	39	3250×1380×1600
AC413	412.5	330	375	300	NTAA855-G7A	140×152	83	3570	39	3450×1380×1600
AC500	500	400	450	360	KTA19-G2	159×159	95	3570	50	3600×1220×1900
AC550	550	440	500	400	KTA19-G3	159×159	105	4350	50	3600×1220×1900
AC550	550	440	500	400	KTA19-G3A	159×159	105	4800	50	3600×1220×1900
AC650	650	520	550	440	KTA19-G4	159×159	107	4350	50	3600×1220×1900
AC687	687	550	625	500	KTAA19-G5	159×159	110	5000	50	3800×1350×2100
AC712	712	570	650	520	KTAA19-G6A	159×159	140	5100	50	3800×1450×2100
AC800	800	640	725	580	QSKTAA19	159×159	145	5800	50	3800×1450×2100
AC825	825	660	750	600	KTA38-GA	159×159	158	6080	50	4300×1650×2400
AC880	880	710	800	640	KTA38-G2	159×159	162	6080	135	4400×1800×2400
AC1000	1000	800	900	720	KTA38-G2B	159×159	170	6080	135	4500×1830×2400
AC1100	1100	880	1000	800	KTA38-G2A	159×159	185	6560	135	4500×1830×2400
AC1375	1375	1100	1250	1000	KTA38-G5	159×159	191	7350	135	4850×1830×2400
AC1375	1375	1100	1250	1000	QSK38-G5	159×159	274	8000	135	4650×1830×2400
AC1650	1650	1320	1500	1200	KTA50-G3	159×159	282	9800	177	5200×2080×2400
AC2250	2250	1800	2000	1600	KTA50-GS8	159×159	309	10700	204	5600×2080×2400
AC2475	2475	1980	2250	1800	QSK60-G4	159×159	394	16644	280	6090×2282×2612

Frequently Asked Questions

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

Q: What is your lead time?

A: About 15-25 days after receiving advance deposit or original L/C.

Q: What certificates do you have?

A: We have ISO certification and can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

Q: What warranty do you provide?

A: One year or 1200 hours' running (whichever occurs first). During the guarantee period, we supply free replacement of easily damaged parts for possible problems (excluding incorrect operation). After expiration, we supply cost spare parts for genset maintenance.
