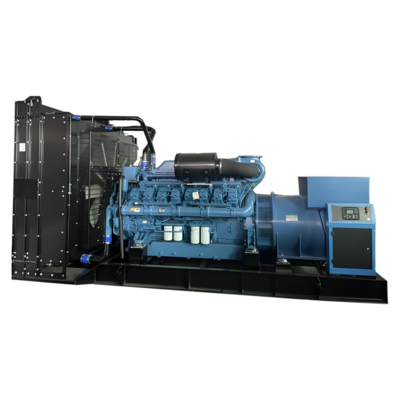

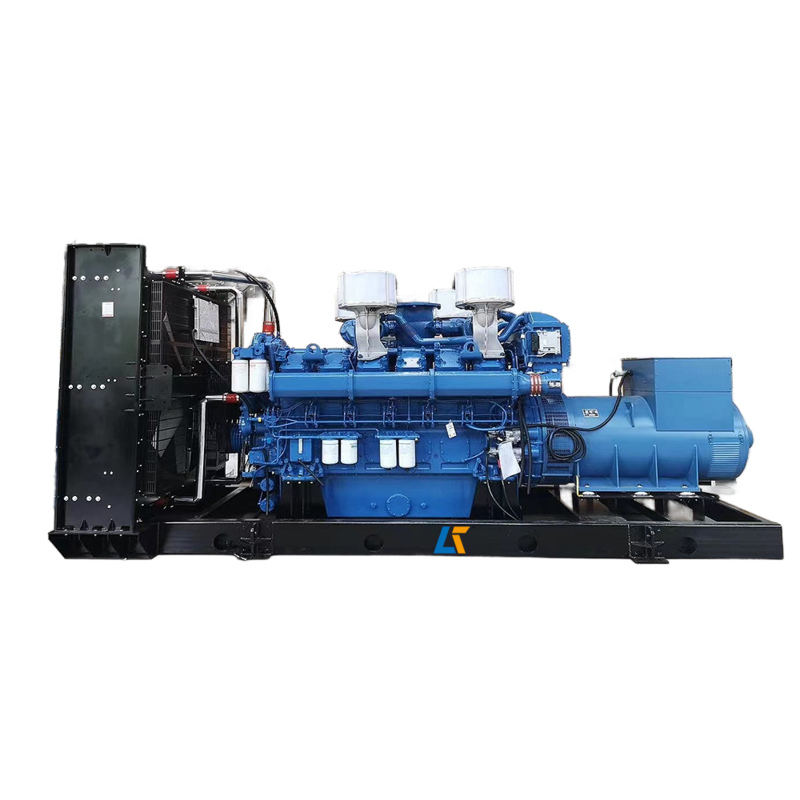

Yuchai 1500kW Diesel Generator Set YC16VTD2510-D30 50Hz

Yuchai 1500kW Diesel Generator Set YC16VTD2510-D30 50Hz

Brand Name:	AIKE POWER
Model Number:	AY2200
MOQ:	1
Price:	USD
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Alternator Type:

Brushless, Self-exciting, AVR

Name:

Diesel Engine Driven Generator

Engine Model:

YC16VTD2510-D30

Engine Type:

6 Cylinders In Line

Model:

AY2000

Port:

Shenzhen,Guangzhou

Rated Power:

5KW~3000KW

Speed:

1500rpm

Control Panel:

ComAp,Deif,Deepsea

Start Method:

Electric Start

Style:

Open-shelf

Frequency:

50Hz

Packaging Details:

plastic wrap

Supply Ability:

20 set/m

Highlight:

Yuchai 1500kW diesel generator

YC16VTD2510-D30 generator set

50Hz diesel generator with warranty

Product Description

Yuchai Diesel Generator Set 1500kw 1875kva High Voltage YC16VTD2510-D30 50/60HZ with ATS Option

Yuchai power generator set with high voltage YC16VTD2510-D30 featuring 50HZ/1500RPM with adjustable voltage options (380/220V, 400/230V, 415/240V). Available in open type, weatherproof type, soundproof type, or trailer type configurations. Also available in 60HZ/1800RPM with voltage options of 220/127V, 380/220V, or 440/254V.

Optional ATS Brands

ABB, Schneider Electric, SOCOMEC & Delixi

Controller Brands

UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Components

Yuchai Engine
40℃ water tank radiator with fan safety shield
24V charging generators
Single bearing generator with IP23 protection and H insulation
Shock absorber
Dry air filter, fuel filter, oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery charger
Complete exhaust system (pipe, bellows, flange, muffler)
8-hour base tank
Complete documentation and manuals

Technical Specifications

Generator Set
Genset Model	AY2000
Rating Power (KW/KVA)	1500/1875
Standby Power (KW/KVA)	1600/2000
Rating Ammeter (A)	2720
Engine
Engine Model	YC16VTD2510-D30
Prime Power (KW/KVA)	1680/2100
Number of Cylinders	16 cylinders in line
Bore × Stroke (mm)	200 × 210
Displacement (l)	52.26
Compression Ratio	14:1
Governor Type	Electric start
Rated RPM	1500
Alternator
Alternator Model	AK-1500-4
Rating Voltage (V)	400/230
Power Factor	0.8
Enclosure Class	IP23
Class of Insulation	H
Dimensions & Weight
Dimensions (L×W×H mm)	5626 × 1650 × 2218
Net Weight (kg)	7228

Frequently Asked Questions

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

Q: What is your lead time?

A: About 15-25 days after receiving advance deposit or original L/C.

Q: What certificates do you have?

A: We have ISO certification and can apply for country-specific certificates including SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

Q: What warranty do you provide?

A: One year or 1200 running hours (whichever occurs first). During warranty period, we supply free replacement for easily damaged parts (excluding incorrect operation). After expiration, we supply cost-price spare parts for maintenance.
