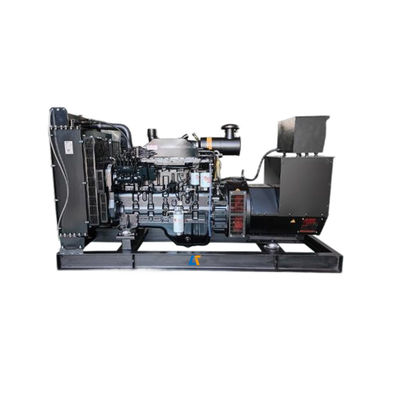

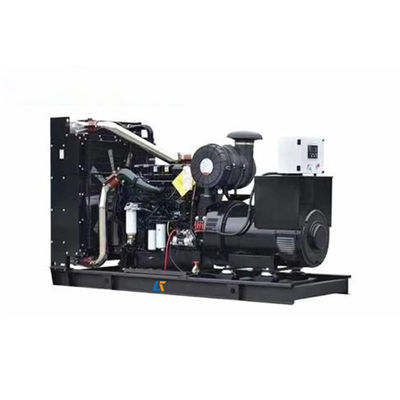

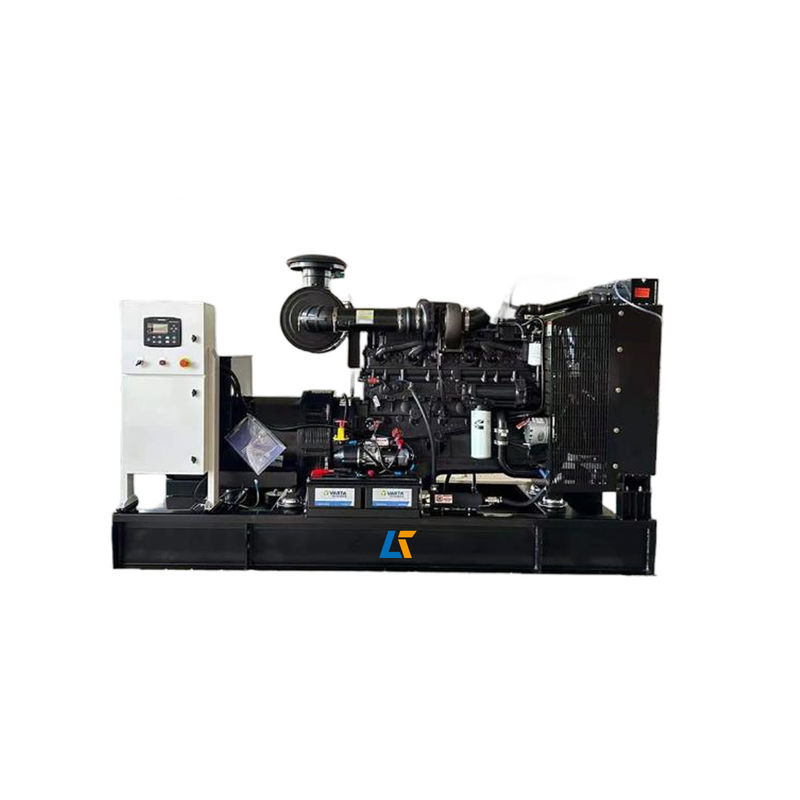

Cummins Generator Set 104KW/130KVA;50HZ;1500RPM Low Noise Diesel Generator

Cummins Generator Set 104KW/130KVA;50HZ;1500RPM Low Noise Diesel Generator

Brand Name:	AIKE POWER
Model Number:	AC143
MOQ:	1
Price:	USD
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Cummins Engine Model:

6BTAA5.9-G2

Cooling System:

Water Cooled

Cooling Way:

Water

Cylinder:

Excitation Way:

Brushless Self-exciter, AVR

Governor Type:

Electronic Governor

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

6 Cylinders In Line

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Rated Power:

20 KW-2000 KW

Alternator Model:

UCI274E

Name:

Cummins Diesel Generator Set

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

1500RPM Cummins Generator Set

50HZ Cummins Generator Set

130KVA Cummins Generator Set

Product Description

Cummins Diesel Engine, Diesel Generator set 50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.

Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option

ATS can be option

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Dongfeng Cummins Engine, model 6BTAA5.9-G2.

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Shock absorber

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set		Genset Model	AC143
		Rating Power (KW/KVA)	104/130
		Standby Power(KW/KVA)	114/142.5
		Rating Ammeter(A)	187
Diesel engine	General data	Engine model	6BTAA5.9-G2
		Prime Power(KW/KVA)	120/163
		Standby Power(KW/KVA)	132/180
		number of Cylinder & Configuration	6 cylinders in line
		Bore X Stroke (mm)	102X120
		Displacement(l)	5.9
		Compression Ratio	16.5:1
		Governor type	Electronic governor
		Rated RPM	1500
	Exhaust system	Exhaust gas flow(m³/min)	25
		Max. Exhaust Gas Temperature(℃)	521
		Max. Exhaust back Pressure(KPA)	10
	Air intake system	Aspiration Type	Turbo & Air-Air cooled
		Max. intake depression(mbar)	6
		Combustion air Volume(m³/min)	8.2
	Fuel system	Rating Fuel Consumption(l/h)	30
	Fuel system	75% full Fuel Consumption(l/h)	30.5
	Lubrication system	Total oil capacity(l)	16.4
		Max permissible oil temp(℃)	121
		Oil pressure at rated rpm(KPA)	345
	Cooling system	Total Coolant capacity(l)	26
		Max. temperature of coolant(℃)	96
		Fan cooling air flow (m³/min)	210
Alternator		Alternator model	UCI274E
		Rating Voltage(V)	400/230
		Rating Capacity(KW/KVA)	104/130
		Eff.%	92.1%
		Power Factor	0.8
		Exciting type	Brushless self-exciter, AVR
		Voltage regulation	±0.5%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP23
		Class of Insulation	H
Battery		Rating Capacity(AH)	2X120AH 12V
Dimension		Generator set dimension (LXWXH)	2400x830x1430
Weight		Generator set Net Weight (kg)	1700

FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 15-25 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year or 1200hours’ running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
