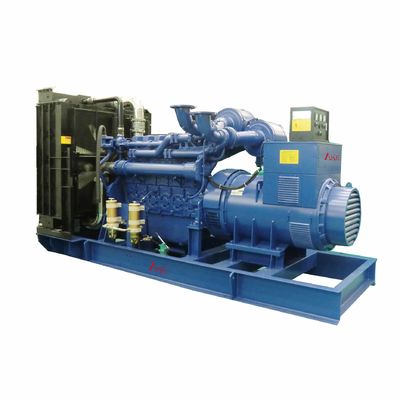

Perkins Power Generator Supplier 800kva Open Diesel Generator

Brand Name:	AIKE POWER
Model Number:	AP900
MOQ:	1
Price:	negotiate
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Name:

800kva Perkins Generator Manufacturer

Alternator Model:

Leroysomer

Circuit Breaker:

ABB,Chit,Delixi

Control Panel Brand:

Deif, Deepsea, Comap

Engine:

UK Perkins

Fuel:

Diesel

Governor Type:

Electronic

Options:

Silent Canopy/trailer/ATS/

Power Factor:

0.8lagging

Engine Model:

4006TAG3A

Speed:

1500/1800 RPM

Voltage:

380/220V,400/230V,415/240V Adjustable

Frequency:

50/60HZ

Insulation:

Class H

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

800kva Diesel Generator

Perkins Power Generator

Open Diesel Generator

Product Description

800kVA Perkins diesel generator set , Perkins diesel power generator set , Perkins generator set

Perkins Diesel Engine, Diesel Generator set 50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.

Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option

There are Perkins from China,UK,USA and india,all depend on the required model.

ATS can be option

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Shock absorber

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set	Genset Model	AP900
	Rating Power (KW/KVA)	640/800
	Standby Power(KW/KVA)	720/900
	Rating Ammeter(A)	1155
Diesel Engine	Engine Model	4006TAG3A
	Prime Power(KW)	705
	Standby Power(KW)	784
	Bore X Stroke (mm)	160X190
	Number of Cylinder & Configuration	6V in line
	Displacement (l)	22.9
	Compression Ratio	13.6:1
	Aspiration	Turbocharged & After-cooled
	Max. intake depression(kPa)	6
	Combustion air Volume(m³/min)	70
	Max. Exhaust back Pressure(kPa)	10
	Exhaust Gas Flow(m³/min)	201
	Max. Exhaust Gas Temperature(℃)	485
	Cooling	Water cooled with Radiator
	Fan cooling air flow(m³/min)	1074
	Total Coolant capacity(l)	105
	Max. temperature of coolant(℃)	93
	Max. permissible oil temp.(℃)	105
	Total oil capacity(l)	113.4c
	Rating Fuel Consumption(l/h)	130
	Governing Type	Electrics Governor
Alternator	Rating Voltage(V)	400/230 (adjustment)
	Alternator Model	TAL-A49-C
	Rating Capacity(KW/KVA)	800/1000
	Eff.%	93.5%
	Power Factor	0.8 lagged
	Exciting type	Brushless PMG exciter, AVR
	Voltage regulation	±0.5%
	No. of Phase	3 phase 4 wire
	Enclosure Class	IP23
	Class of Insulation	H
Battery	Rating Capacity(AH)	2X200AH 12V
	Generator set dimension (LXWXH)	5300X1870X2500 mm
	Weight (kg)	5500

FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 15-25 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year or 1200hours’ running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
