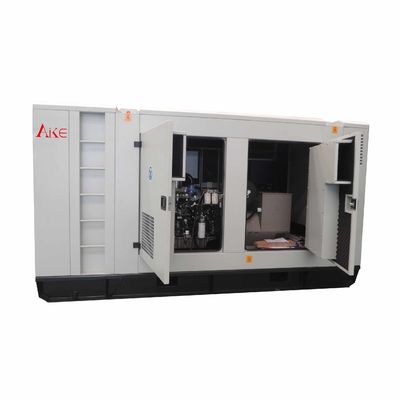

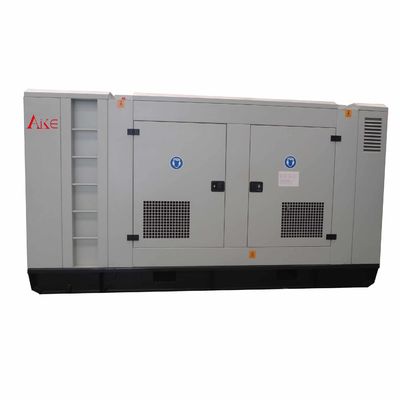

Canopy Type Genset Water Cooled 3 Phase Diesel Generator Set

Name: Canopy Type Genset Water Cooled 3 Phase Diesel Generator Set
Brand: Guangdong Aike Power Technology Co., Ltd
SKU: AP400
Availability: InStock

Brand Name:	AIKE POWER
Model Number:	AP400
MOQ:	1
Payment Terms:	L/C, T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Alternator:

Leroysomer LSA46.3L11

Control System:

Digital Control Panel

Cooling System:

Water-cooled

Engine:

Perkins 2206C-E13TAG2

Frequency:

50Hz

Fuel Type:

Diesel

Model:

AP400

Noise Level:

≤75dB(A)@7m

Phase:

Rated Power:

280/350kVA

Rated Voltage:

400/230V

Starting Method:

Electric Start

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

Canopy Type Genset

Canopy Type 3 Phase Diesel Generator Set

Water Cooled 3 Phase Diesel Generator Set

Product Description

Soundproof Canopy Type , Supper Silent Genset , Silent Diesel Generator Set

Silent diesel generator set,Soundproof canopy diesel generator set,silent genset for Hotel,apartment,factory and so on

50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.

Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option

ATS can be option

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Engine brand as follow:Cummins, Perkins,Yuchai,Shangchai,volvo and so on

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Shock absorber

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set	Genset Model	AP400
	Rating Power (KW/KVA)	280/350
	Standby Power(KW/KVA)	320/400
	rating Ammeter(A)	487 @ 415V
Diesel Engine	Engine Model	2206C-E13TAG2
	Prime Power(KW)	324
	Standby Power(KW)	368
	Bore X Stroke (mm)	130X157
	number of Cylinder & Configuration	6 in line
	Displacement(l)	12.5
	Compression Ratio	16.3:1
	Aspiration	Turbocharged & After-cooled
	Max. intake depression(mbar)	6
	Combustion air Volume(m³/min)	38.1
	Max. Exhaust back Pressure(mbar)	10
	Exhaust Gas Flow(m³/min)	83
	Max. Exhaust Gas Temperature(℃)	459
	Cooling	Water cooled with Radiator
	Fan cooling air flow(m³/min)	564
	Engine Coolant capacity(l)	51.4
	Max. temperature of coolant(℃)	103
	Max. permissible oil temp.(℃)	113
	Total oil capacity(l)	68
	Rating Fuel Consumption(l/h)	107
	Governing Type	Electrics Injection
Alternator	Rating Voltage(V)	400/230 Adjustable
	Alternator Model	LSA46.3L11
	Rating Capacity(KW/KVA)	280/350
	Eff.%	94.1%
	Power Factor	0.8 lagged
	Exciting type	Brushless self-exciter, AVR
	Voltage regulation	±0.5%
	No. of Phase	3 phase 4 wire
	Enclosure Class	IP23
	Class of Insulation	H
Battery	Rating Capacity(AH)	2X150AH 12V
Dimension	Generator set Dimension (LXWXH)(mm)	3200X1200X1800
Noise (dB)	From 7 meters to test	70dB
Weight	Genset Net Weight (kg)	4200
