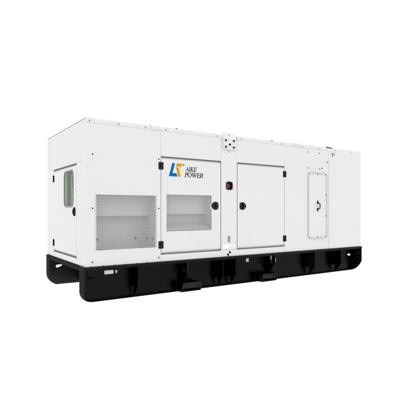

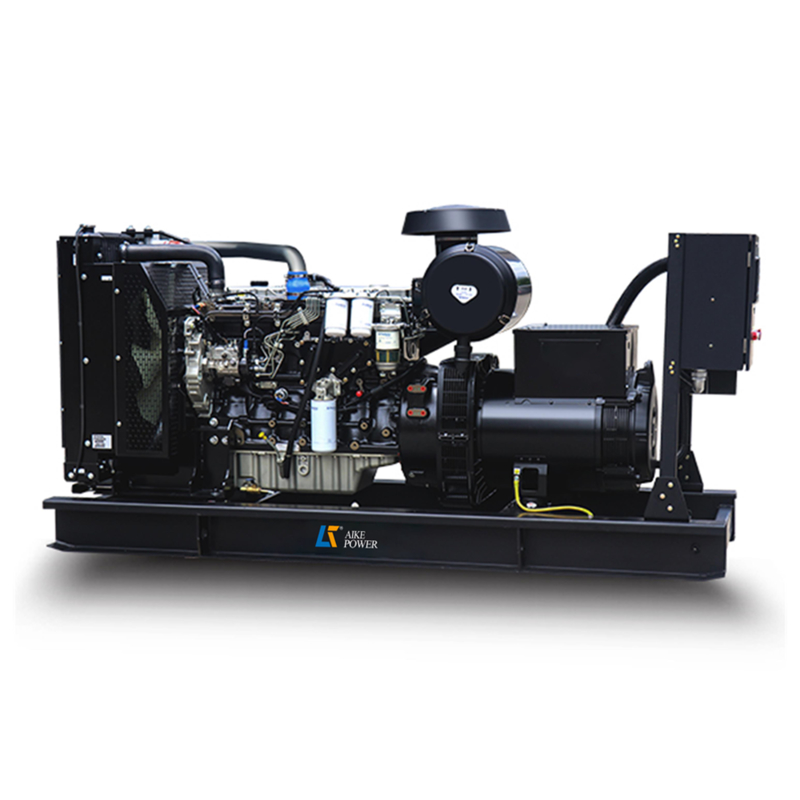

250KW Cummins Diesel Generator Set YC6MK420-D31 60Hz

Brand Name:	AIKE POWER
Model Number:	AY350
MOQ:	1
Price:	negotiate
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Cummins Engine Model:

YC6MK420-D31

Cooling System:

Water Cooled

Cooling Way:

Water

Cylinder:

Excitation Way:

Brushless Self-exciter, AVR

Governor Type:

Electronic Governor

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

6 Cylinders In Line

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Rated Power:

20 KW-2000 KW

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

60hz cummins diesel generator set

1500rpm cummins diesel generator set

1500rpm 60hz cummins diesel generator

Product Description

250KW 312.5KVA Diesel Engine Generator, 60HZ Cummins Diesel Generator Set

Product Description

The 250KW 312.5KVA Diesel Engine Generator features a Cummins Diesel Engine (model YC6MK420-D31) with multiple configuration options:

60HZ/1500RPM operation
Voltage options: 380/220V, 400/230V, 415/240V (adjustable)
Available in Open Type, weatherproof, soundproof, or trailer configurations
Alternative option: 60HZ/1800RPM with 220/127V, 380/220V, or 440/254V
Optional ATS (Automatic Transfer Switch) available
Controller brands: UK Deepsea, Czech ComAp, Denmark DEIF, or China Smartgen

Generator Standard Components

Dongfeng Cummins Engine (model YC6MK420-D31)
40℃ water tank radiator with driving belt cooling fans and safety shield
24V charging generator
Single bearing generator with IP23 protection and H insulation
Shock absorber system
Dry air filter, fuel filter, and oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery charger
Complete exhaust system with pipe, bellows, flange, and muffler
8-hour base fuel tank
Complete documentation and manuals

Technical Specifications

Model	Standby Power (kVA/kW)	Prime Power (kVA/kW)	Engine Model	Bore×Stroke (mm)	Fuel Consumption (L/h)	Weight (Kg)	Lube Volume (L)	Dimensions (LxWxH mm)
AC28	28/23	26/21	4B3.9-G1	102×120	6.5	885	10.9	1600×830×1200
AC35	35/28	31/25	4B3.9-G1	102×120	6.8	885	10.9	1600×830×1200
AC2475	2475/1980	2250/1800	QSK60-G4	159×159	394	16644	280	6090×2282×2612

Complete model range available - contact us for specific requirements

Frequently Asked Questions

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

Q: What is your lead time?

A: About 15-25 days after receiving advance deposit or original L/C.

Q: What certificates do you have?

A: We have ISO certification and can apply for country-specific certificates including SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

Q: What warranty do you provide?

A: One year or 1200 hours' running (whichever occurs first). During warranty period, we supply free replacement of easily damaged parts for operational issues (excluding incorrect operation). After expiration, we provide cost-price spare parts for maintenance.
