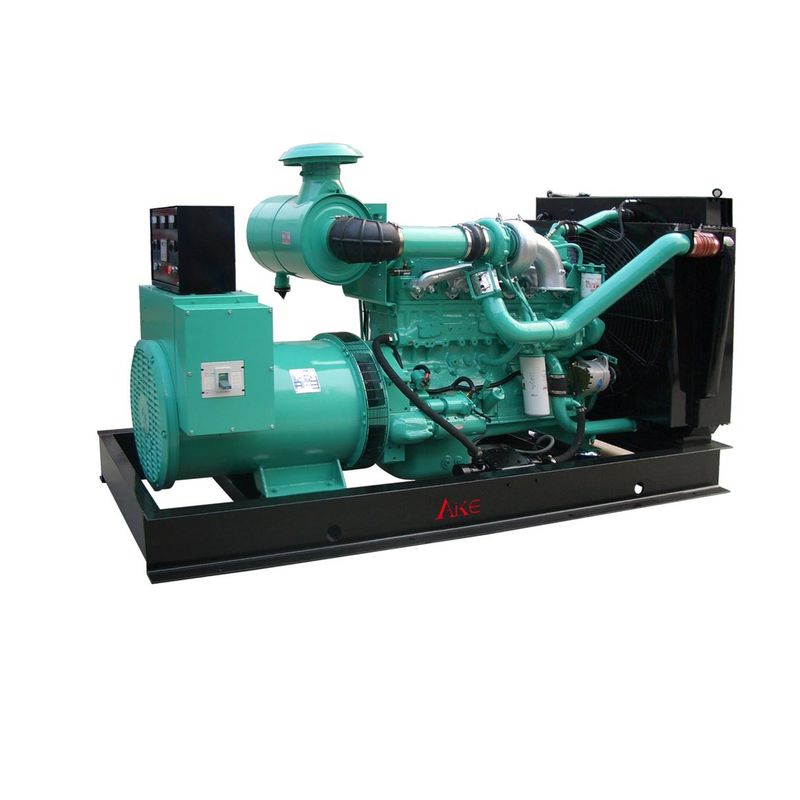

150KW Cummins Diesel Generator Set YC6A245-D32 60Hz Water Cooled

Brand Name:	AIKE POWER
Model Number:	AY200
MOQ:	1
Price:	negotiate
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Cummins Engine Model:

YC6A245-D32

Cooling System:

Water Cooled

Cooling Way:

Water

Cylinder:

Excitation Way:

Brushless Self-exciter, AVR

Governor Type:

Electronic Governor

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

6 Cylinders In Line

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Rated Power:

20 KW-2000 KW

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

60hz cummins diesel generator set

1500rpm cummins diesel generator set

1500rpm 60hz cummins diesel generator

Product Description

150KW 187.5KVA Diesel Engine Generator, 60HZ Cummins Diesel Generator Set

Product Specifications

Cummins Diesel Engine, Diesel Generator set YC6A245-D32

60HZ/1500RPM, 380/220V, 400/230V, 415/240V (adjustable)

Available configurations: Open Type, weatherproof type, soundproof type, or trailer type

Optional: 60HZ/1800RPM with voltage options of 220/127V, 380/220V, 440/254V

Automatic Transfer Switch (ATS) available as option

Controller Options

UK Deepsea
Czech ComAp
Denmark DEIF
Smartgen China

Generator Standard Components

Dongfeng Cummins Engine (Model YC6A245-D32)
40℃ water tank radiator with fan safety shield
24V charging generator
Single bearing generator with IP23 protection and H insulation
Shock absorber system
Dry air filter, fuel filter, and oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery charger
Complete exhaust system (pipe, bellows, flange, muffler)
8-hour base fuel tank
Complete documentation and manuals

Technical Specifications

Model	Standby Power (kVA/kW)	Prime Power (kVA/kW)	Engine Model	Bore×Stroke (mm)	Fuel Consumption (L/h)	Weight (Kg)	Lube Volume (L)	Dimensions (LxWxH mm)
AC28	28/23	26/21	4B3.9-G1	102×120	6.5	885	10.9	1600×830×1200
AC35	35/28	31/25	4B3.9-G1	102×120	6.8	885	10.9	1600×830×1200
AC43	43/35	40/32	4BT3.9-G1	102×120	8	900	10.9	1800×830×1200
AC2475	2475/1980	2250/1800	QSK60-G4	159×159	394	16644	280	6090×2282×2612

Frequently Asked Questions

Do you offer OEM service?

Yes

What is your payment term?

30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

What is your lead time?

About 15-25 days after receiving advance deposit or original L/C.

What certificates do you have?

We have ISO certification and can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

What warranty do you provide?

One year or 1200 hours' running (whichever occurs first). During the guarantee period, we will supply free replacement for easily damaged parts for possible problems (excluding incorrect operation). After expiration, we supply cost spare parts for genset maintenance.
