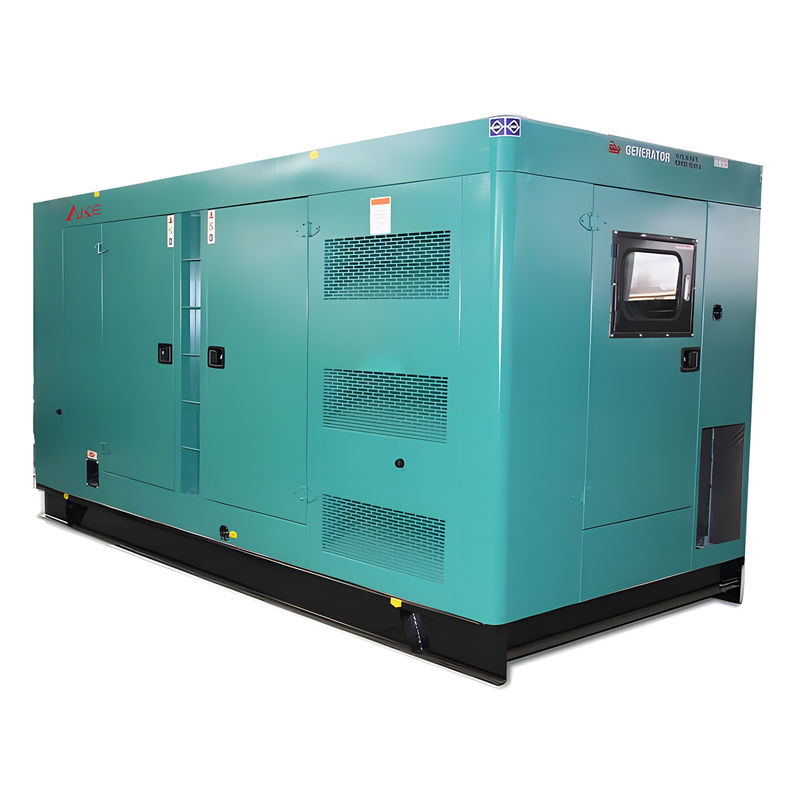

Green Yuchai Diesel Generator Set 800 KVA Industrial Generator

Name: Green Yuchai Diesel Generator Set 800 KVA Industrial Generator
Brand: Guangdong Aike Power Technology Co., Ltd
SKU: AY880
Availability: InStock

Brand Name:	AIKE POWER
Model Number:	AY880
MOQ:	1
Price:	USD
Payment Terms:	L/C,T/T
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Alternator Type:

Brushless, Self-exciting, AVR

Control Panel:

ComAp,Deif,Deepsea

Engine Model:

YC6TH1070-D31

Engine Type:

6 Cylinders In Line

Model:

AY880

Port:

Shenzhen,Guangzhou

Rated Power:

5KW~3000KW

Speed:

1500rpm

Start Method:

Electric Start

Style:

Open-shelf

Frequency:

50Hz

Name:

Yuchai Diesel Generator Set

Packaging Details:

plastic wrap

Supply Ability:

20 set/m

Highlight:

Green Yuchai Diesel Generator Set

Yuchai Diesel Generator Set 800 KVA

Yuchai 800 KVA Industrial Generator

Product Description

800 Kva Diesel Generator , Generator Silent Diesel , Marine Generator

Yuchai power generator set with high voltage YC6TH1070-D31

50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.

Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option

ATS can be option,there are ABB,Schneider Electric,SOCOMEC&Delixi brand.

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Yuchai Engine, model
Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield
24 V charging generators
Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree
Shock absorber
Dry air filter, Fuel filter, Oil filter
Power output circuit breaker
Standard control panel
12 V battery and battery connection cables
Battery Charger
Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank
Documents and Manuals

Technical Specifications:

Generator set		Genset Model	AY880
		Rating Power (KW/KVA)	640/800
		Standby Power(KW/KVA)	710/880
		Rating Ammeter(A)	1160
engine	General data	Engine model	YC6TH1070-D31
		Prime Power(KW/KVA)	715/894
		Standby Power(KW/KVA)	787/984
		number of Cylinder & Configuration	6 cylinders in line
		Bore X Stroke (mm)	200*210
		Displacement(l)	28.14
		Compression Ratio	14:1
		Governor type	Electric start
		Rated RPM	1500
	Exhaust system	Exhaust gas flow(m³/min)	33
		Max. Exhaust Gas Temperature(℃)	550
		Max. Exhaust back Pressure(KPA)	10
	Air intake system	Aspiration Type	Turbocharged intercoolant
		Max. intake depression(KPA)	12
		Combustion air Volume(m³/min)	33
	Fuel system	Rating Fuel Consumption(l/h)	50.4
	Fuel system	75% full Fuel Consumption(l/h)	37.4
	Lubrication system	Total oil capacity(l)	21
		Max permissible oil temp(℃)	97
		Oil pressure at rated rpm(KPA)	345-413
	Cooling system	Total Coolant capacity(l)	10
		Max. temperature of coolant(℃)	550
		Fan cooling air flow(m³/min)	125
Alternator		Alternator model	AK-640-4
		Rating Voltage(V)	400/230
		Rating Capacity(KW/KVA)	640/800
		Eff.%	87.5%
		Power Factor	0.8
		Exciting type	Brushless self-exciter, AVR
		Voltage regulation	±0.5%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP23
		Class of Insulation	H
Battery		Rating Capacity(AH)	4X150AH 12V
Dimension		Generator set dimension (LXWXH)	4731x1500x2100
Weight		Generator set Net Weight (kg)	7228

FAQ

Q: Do you offer OEM service?: A: Yes
Q: What is your payment term?: A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?: A: About 15-25 days after receiving advance deposit or original L/C.
Q: What certificates do you have?: A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?: A: One year or 1200hours’ running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
