Yuchai Diesel Generator Set
Created with Pixso.

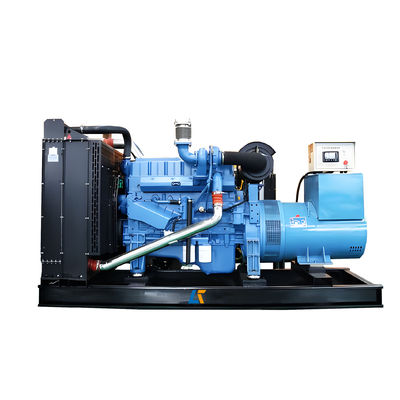

300kw Yuchai Diesel Generator Set Open Type Weatherproof 1500rpm Diesel Generator Sale

300kw Yuchai Diesel Generator Set Open Type Weatherproof 1500rpm Diesel Generator Sale

Brand Name: AIKE POWER
Model Number: AY412
MOQ: 1
Price: USD
Supply Ability: 20 set/m
Detail Information
Place of Origin:
CHINA
Certification:
ISO,OEM
Name:
300kw Yuchai Diesel Generator Set
Control Panel:
ComAp,Deif,Deepsea
Controller Type:
Digital
Model:
AY412
Rated Power:
5KW~3000KW
Speed:
1500rpm
Start Method:
Electric Start
Style:
Open-shelf
Frequency:
50Hz
Engine Type:
4 Cylinders In Line
Packaging Details:
plastic wrap
Supply Ability:
20 set/m
Highlight:

300kw Yuchai Diesel Generator Set

,

Yuchai Diesel Generator Set Open Type

,

300kw Diesel Generator

Product Description

50hz Diesel Generator , Silenced Diesel Generator , 300kw Diesel Generator



Yuchai power generator set with high voltage YC6K500-D30

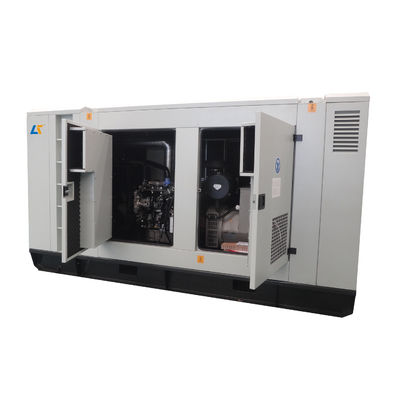

50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.

Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option



ATS can be option,there are ABB,Schneider Electric,SOCOMEC&Delixi brand.



Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China



Generator Standard Compose:

  • Yuchai Engine, model
  • Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield
  • 24 V charging generators
  • Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree
  • Shock absorber
  • Dry air filter, Fuel filter, Oil filter
  • Power output circuit breaker
  • Standard control panel
  • 12 V battery and battery connection cables
  • Battery Charger
  • Exhaust pipe, Bellows, Flange, Muffler set
  • 8 hours’ base tank
  • Documents and Manuals
Generator set Genset Model AY412
Rating Power (KW/KVA) 300/375
Standby Power(KW/KVA) 330/412
Rating Ammeter(A) 544
Diesel engine General data Engine model YC6K500-D30
Prime Power(KW/KVA) 335/419
Standby Power(KW/KVA) 370/463
number of Cylinder & Configuration 4 cylinders in line
Bore X Stroke (mm) 6-129*155
Displacement(l) 12.16
Compression Ratio 16.5:1
Governor type Electric start
Rated RPM 1500
Exhaust system Exhaust gas flow(m³/min) 33
Max. Exhaust Gas Temperature(℃) 550
Max. Exhaust back Pressure(KPA) 10
Air intake system Aspiration Type Turbocharged intercoolant
Max. intake depression(KPA) 12
Combustion air Volume(m³/min) 33
Fuel system Rating Fuel Consumption(l/h) 50.4
75% full Fuel Consumption(l/h) 37.4
Lubrication system Total oil capacity(l) 21
Max permissible oil temp(℃) 97
Oil pressure at rated rpm(KPA) 345-413
Cooling system Total Coolant capacity(l) 10
Max. temperature of coolant(℃) 550
Fan cooling air flow(m³/min) 125
Alternator Alternator model AK-300-4
Rating Voltage(V) 400/230
Rating Capacity(KW/KVA) 300/375
Eff.% 91.5%
Power Factor 0.8
Exciting type Brushless self-exciter, AVR
Voltage regulation ±0.5%
No. of Phase 3 phase 4 wire
Enclosure Class IP23
Class of Insulation H
Battery Rating Capacity(AH) 2X150AH 12V
Dimension Generator set dimension (LXWXH) 3243x1100x1900
Weight Generator set Net Weight (kg) 2950



FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 15-25 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year or 1200hours’ running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
