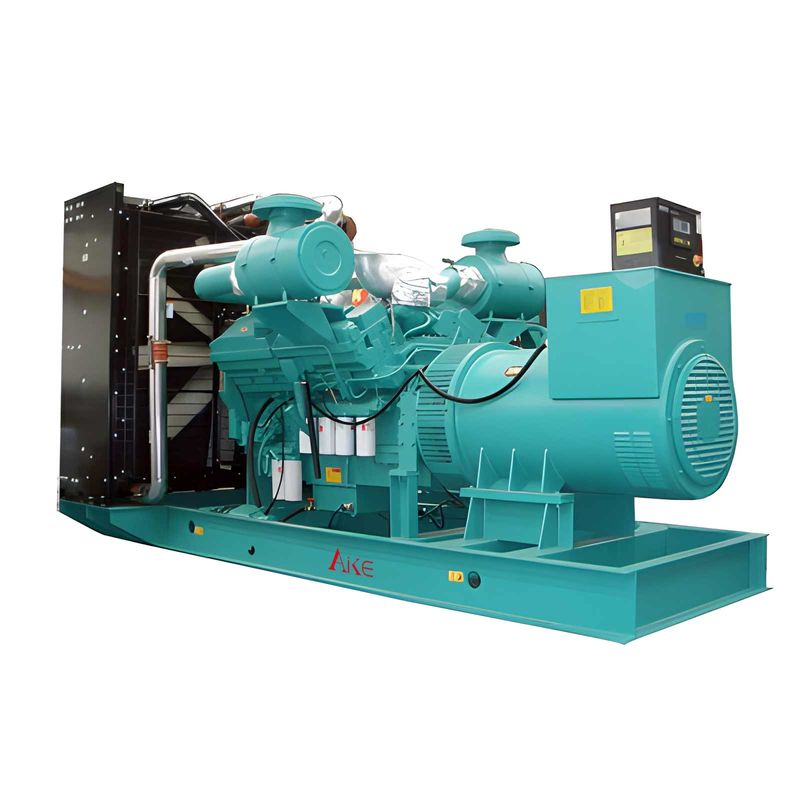

1000 Kw Cummins Diesel Generator Set Water Cooled KTAA38-G9A

Brand Name:	AIKE POWER
Model Number:	AC1375
MOQ:	1
Price:	USD
Payment Terms:	L/C, T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Name:

1000 Kw Cummins Generator

Cooling System:

Water Cooled

Cooling Way:

Water

Cylinder:

12V

Cummins Engine Model:

KTAA38-G9A

Excitation Way:

Brushless Self-exciter, AVR

Governor Type:

Electronic Governor

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Rated Power:

20 KW-2000 KW

Alternator Model:

LVI634G

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

1000 Kw Cummins Diesel Generator Set

Cummins 1000 Kw Diesel Generator

1000 Kw Cummins Generator Water Cooled

Product Description

Cummins 1000 Kw Diesel Generator,Diesel Motor,Generator Ats,Diesel Generator Set,Cummins Diesel Engine

Cummins Diesel Engine, Diesel Generator set 50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.

Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option

ATS can be option

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Dongfeng Cummins Engine, model KTAA38-G9A.

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Shock absorber

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set		Genset Model	AC1375
		Rating Power (KW/KVA)	1000/1250
		Standby Power(KW/KVA)	1100/1375
		Rating Ammeter(A)	1804
Diesel engine	General data	Engine model	KTAA38-G9A
		Prime Power(KW/KVA)	1097/1196
		Standby Power(KW/KVA)	1207/1360
		number of Cylinder & Configuration	12V
		Bore X Stroke (mm)	159X159
		Displacement(l)	38
		Compression Ratio	13.9:1
		Governor type	Electronic governor
		Rated RPM	1500
	Exhaust system	Exhaust gas flow(m³/min)	245
		Max. Exhaust Gas Temperature(℃)	460
		Max. Exhaust back Pressure(KPA)	10
	Air intake system	Aspiration Type	Turbo &Air-Air cooled
		Max. intake depression(mbar)	6
		Combustion air Volume(m³/min)	91
	Fuel system	Rating Fuel Consumption(l/h)	233
	Fuel system	75% full Fuel Consumption(l/h)	235
	Lubrication system	Total oil capacity(l)	135
		Max permissible oil temp(℃)	121
		Oil pressure at rated rpm(KPA)	241-345
	Cooling system	Total Coolant capacity(l)	308
		Max. temperature of coolant(℃)	100
		Fan cooling air flow (m³/min)	1380
Alternator		Alternator model	LVI634G
		Rating Voltage(V)	400/230
		Rating Capacity(KW/KVA)	1000/1250
		Eff.%	95.1%
		Power Factor	0.8
		Exciting type	Brushless self-exciter, AVR
		Voltage regulation	±0.5%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP23
		Class of Insulation	H
Battery		Rating Capacity(AH)	4X150AH 12V
Dimension		Generator set dimension (LXWXH)	4800x1950x2300
Weight		Generator set Net Weight (kg)	9850

FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 15-25 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year or 1200hours’ running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
