Yuchai 500kW 625kVA 50Hz Silent Diesel Generator Price & Specifications

Name: Yuchai 500kW 625kVA 50Hz Silent Diesel Generator Price & Specifications
Brand: Guangdong Aike Power Technology Co., Ltd
SKU: AY412
Availability: InStock

Brand Name:	AIKE POWER
Model Number:	AY412
MOQ:	1
Price:	USD
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Name:

300kw Yuchai Diesel Generator Set

Control Panel:

ComAp,Deif,Deepsea

Controller Type:

Digital

Model:

AY412

Rated Power:

5KW~3000KW

Speed:

1500rpm

Start Method:

Electric Start

Style:

Open-shelf

Frequency:

50Hz

Engine Type:

4 Cylinders In Line

Packaging Details:

plastic wrap

Supply Ability:

20 set/m

Highlight:

Yuchai 500kW silent diesel generator

625kVA Yuchai diesel generator set

50Hz silent diesel generator with warranty

Product Description

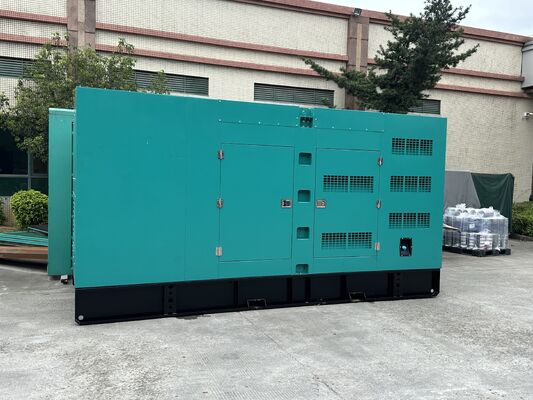

Yuchai 500kW 625kVA 50Hz Silent Diesel Generator

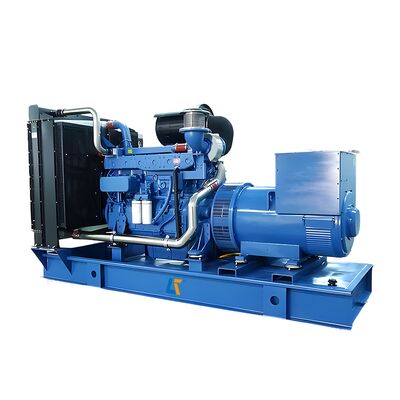

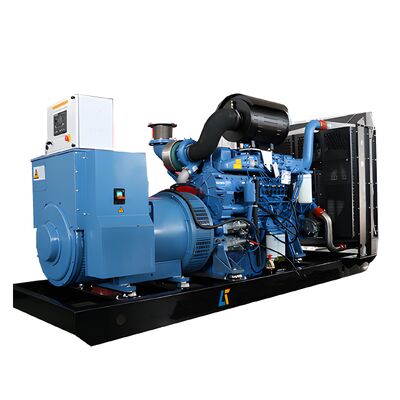

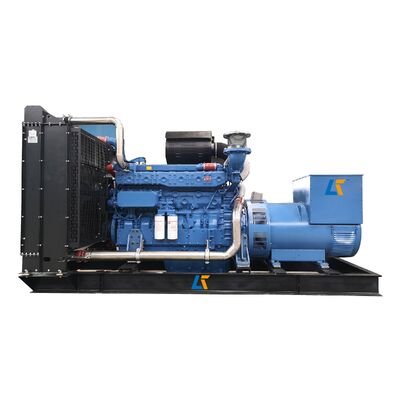

This Yuchai power generator set features the high voltage YC6K500-D30 engine with multiple configuration options including open type, weatherproof type, soundproof type, and trailer type.

Electrical Specifications:
50Hz/1500RPM with adjustable voltages: 380/220V, 400/230V, 415/240V
60Hz/1800RPM options available with voltages: 220/127V, 380/220V, 440/254V

Available Control & ATS Options

ATS Brands: ABB, Schneider Electric, SOCOMEC, Delixi
Controller Brands: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Standard Generator Components

Yuchai Engine with specified model
40℃ environmental temperature water tank radiator with belt-driven cooling fans and safety shield
24V charging generator
Single bearing generator with IP23 protection and H insulation class
Shock absorber system
Dry air filter, fuel filter, and oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery charger
Complete exhaust system with pipe, bellows, flange, and muffler
8-hour base fuel tank
Complete documentation and manuals

Technical Specifications

Generator Set Specifications
Genset Model	AY412
Rating Power (KW/KVA)	300/375
Standby Power (KW/KVA)	330/412
Rating Ammeter (A)	544
Diesel Engine Details
Engine Model	YC6K500-D30
Prime Power (KW/KVA)	335/419
Standby Power (KW/KVA)	370/463
Number of Cylinders & Configuration	4 cylinders in line
Bore X Stroke (mm)	6-129*155
Displacement (l)	12.16
Compression Ratio	16.5:1
Governor Type	Electric start
Rated RPM	1500
Exhaust System
Exhaust Gas Flow (m³/min)	33
Max. Exhaust Gas Temperature (℃)	550
Max. Exhaust Back Pressure (KPA)	10
Air Intake System
Aspiration Type	Turbocharged intercoolant
Max. Intake Depression (KPA)	12
Combustion Air Volume (m³/min)	33
Fuel System
Rating Fuel Consumption (l/h)	50.4
75% Full Fuel Consumption (l/h)	37.4
Lubrication System
Total Oil Capacity (l)	21
Max Permissible Oil Temp (℃)	97
Oil Pressure at Rated RPM (KPA)	345-413
Cooling System
Total Coolant Capacity (l)	10
Max. Temperature of Coolant (℃)	550
Fan Cooling Air Flow (m³/min)	125
Alternator
Alternator Model	AK-300-4
Rating Voltage (V)	400/230
Rating Capacity (KW/KVA)	300/375
Efficiency (%)	91.5%
Power Factor	0.8
Exciting Type	Brushless self-exciter, AVR
Voltage Regulation	±0.5%
Number of Phase	3 phase 4 wire
Enclosure Class	IP23
Class of Insulation	H
Battery & Dimensions
Battery Rating Capacity	2X150AH 12V
Generator Set Dimensions (LxWxH)	3243x1100x1900
Generator Set Net Weight (kg)	2950

Frequently Asked Questions

Do you offer OEM service?

Yes

What is your payment term?

30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

What is your lead time?

About 15-25 days after receiving advance deposit or original L/C.

What certificates do you have?

We have ISO certification and can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

What warranty do you provide?

One year or 1200 hours' running (whichever occurs first). During the guarantee period, we supply free replacement of easily damaged parts for problems not caused by incorrect operation. After expiration, we supply cost spare parts for genset maintenance.
